Trailed Double Auger

Apache II-III

Datasheet »     Customize your Apache II-III with accessories »

APACHE II and APACHE III

Patented cutter - mixer - distributor trailed wagon with two or three augers on different levels - mechanichal transmission

NEW MACHINES GUARANTEED BY TWO INTERNATIONAL PATENTS:
No. PD2001A000228 and No. PD2001A000229



CAPACITY: 50  CUBIC METRES

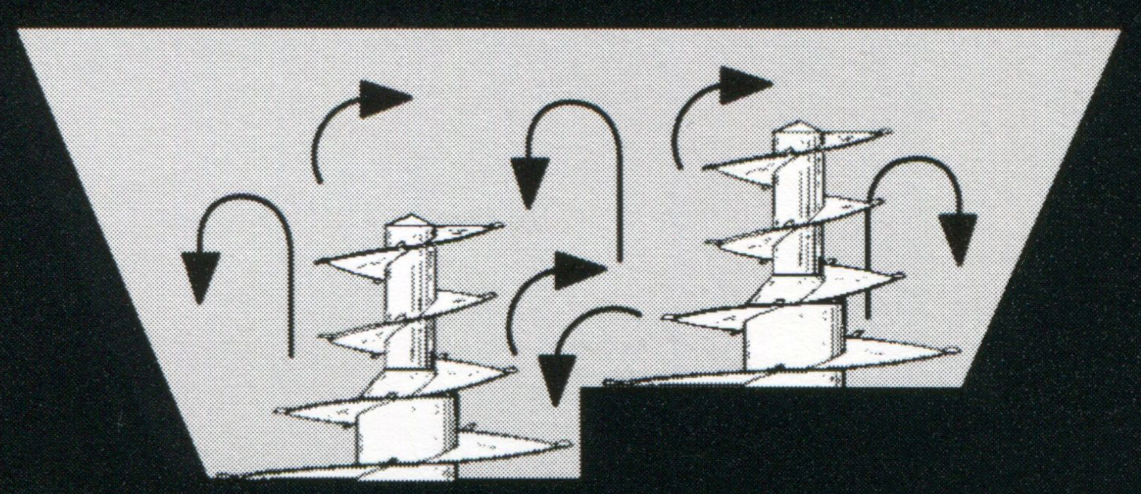

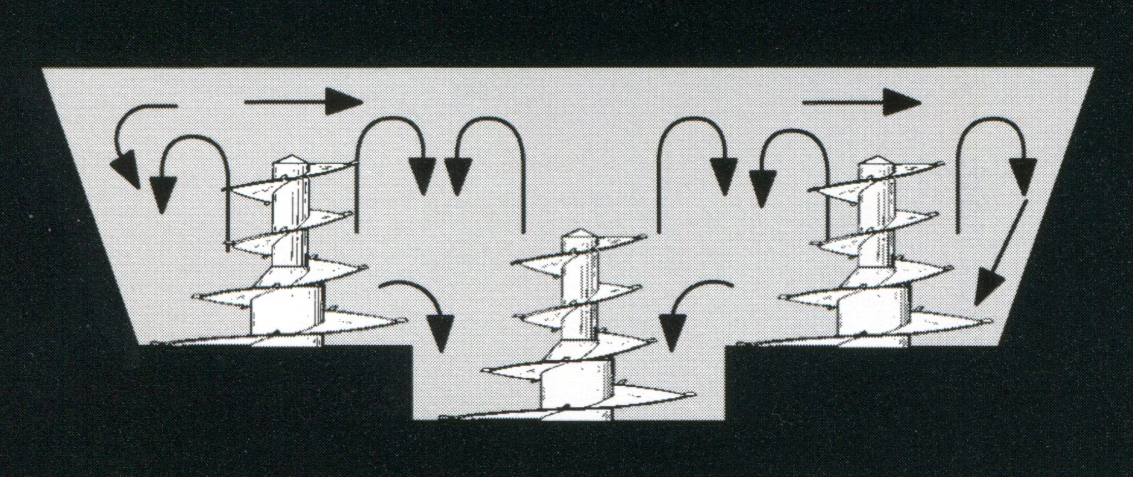

It is a vertical feed mixers in two or three screws that unlike the other wagons works on planes of different height of at least 15 cm. In this way the force of gravity favors the passage of the material to fall from side to side and this creates a double-rotary vertical mixing cycle and the different height ensures the intersection of the augers at the bottom without any collision of the same, also in phase variation of the speed of revolutions. The result is a unique blending with the ability to insert any type of product: long, short, packed, wet and dry. This system is also suitable for the preparation of dry rations for the feeding of beef and sheep that also require large amount of fibrous product.

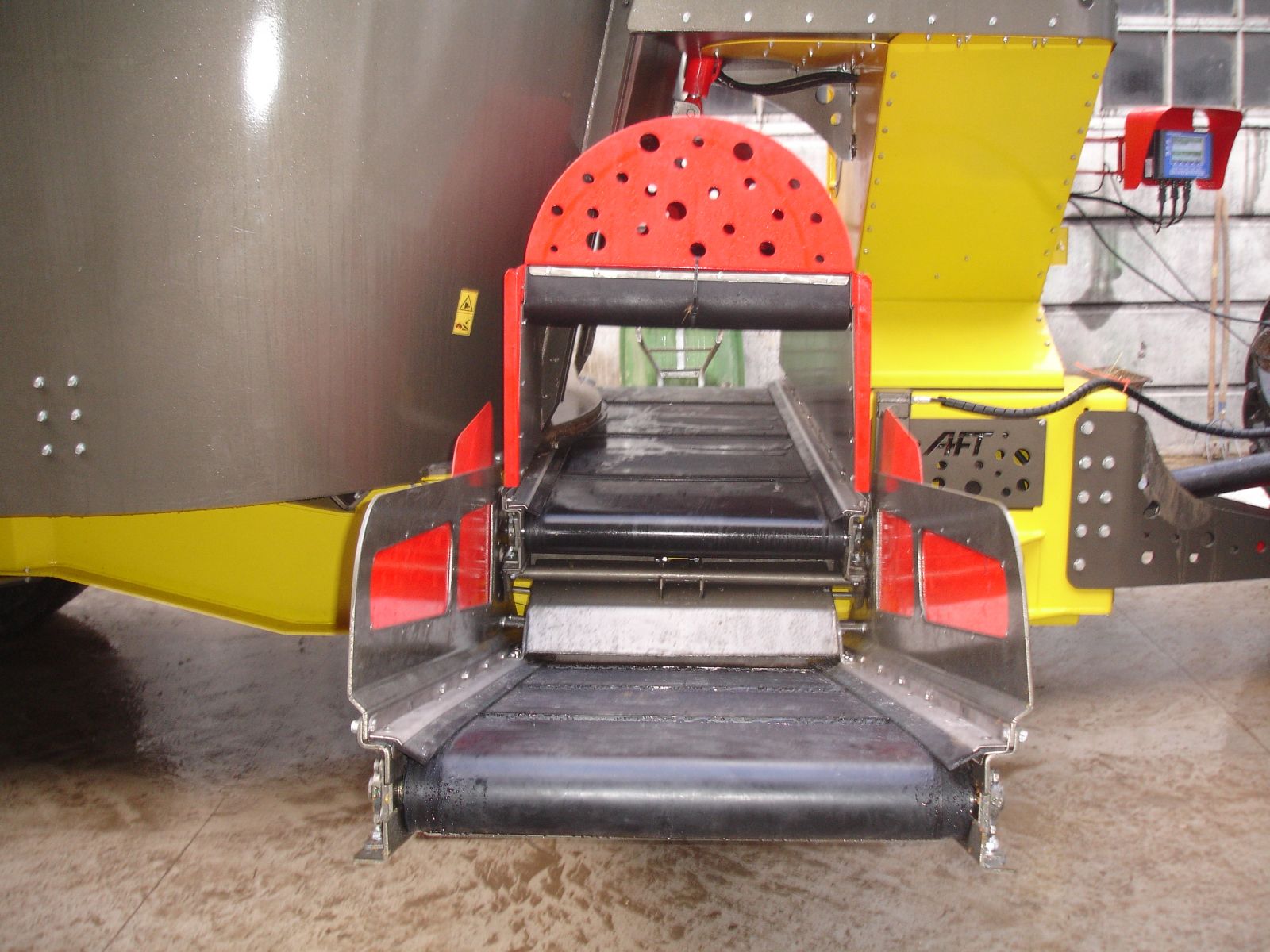

DISCHARGE DOOR WITH SEAGULL WINGS' SHAPE LOWERED TRI-AXLE : 2 STEERING AXLE
SPECIAL VERSION FOR  PARMIGIANO CHEESE

N. 3   AUGERS

N. 42 SABER BLADES

N. 82 SMALL BLADES
